ZDY3000LG Drill Rigs are suitable for high-speed auger drilling in soft and outburst-prone coal seam. It can effectively improve the drilling cutting removal ability. With high rated torque and rotary speed, the drills can significantly improve drilling depth in soft coal seam and other cracked formation,...

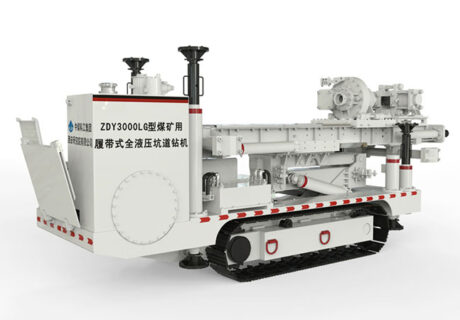

ZDY3000LG Drill Rigs are suitable for high-speed auger drilling in soft and outburst-prone coal seam. It can effectively improve the drilling cutting removal ability. With high rated torque and rotary speed, the drills can significantly improve drilling depth in soft coal seam and other cracked formation, which can effectively solve the drilling difficult problem of in soft coal seam.
1.Multi degree of freedom luffing mechanism, convenient for angle adjustment and stability
The azimuth angle adjustment is ± 90°, the primary angle adjustment range is -60° ~ ±90° (after turning the machine body, it can reach -90°~±90°), and the height adjustment range is 1100mm. The angle adjustment and stabilization process does not need to screw down the bolts, but only needs to operate the handle of the hydraulic valve.
2. Borehole can be drilled by ZDY3000LG without pulling down the belt.
3.The width and size of the drilling rig is small (1250mm), which is convenient for moving the hole (or drilling before construction);The feed device can slide back and forth, and the position of the machine body can be adjusted flexibly during the side wall construction of the belt lane to reduce the actual occupation of the tunnel space by the drilling machine.
4.It is stable and reliable during drilling construction, which is conducive to the treatment of accidents in the hole.
5.The drilling rig is equipped with high-speed power head and automatic variable motor, which can adjust the spindle speed through the spindle speed control valve block, which is convenient, fast, time-saving and labor-saving.
