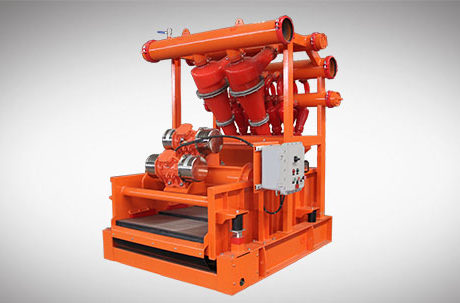

Mud Cleaner is the second phase or the third phase solids control equipment, and it is the combination of desander, desilter and underneath shale shaker, so it can be called Desander and Desilter. With compact structure, small footprint and great efficiencty, it is the ideal choice as the second or the...
Mud Cleaner is the second phase or the third phase solids control equipment, and it is the combination of desander, desilter and underneath shale shaker, so it can be called Desander and Desilter. With compact structure, small footprint and great efficiencty, it is the ideal choice as the second or the third phase solids control equipments.
As the famous Mud Cleaner Manufacturer and Exporter in China, Brightway design and manufacture the BWZJ Mud Cleaner for sale and customized the mud cleaner according to customers’ request.
Brightway Mud Cleaner advantages: Good stability and durable; Improved drilling fluid recovery; Longer screen life; Be capable of managing reactive, sticky, or fine solids; Operators & environment friendly; Outstanding corrosion resistent Cost effective method of re-cycling drilling muds; Reduces cost of supplying fresh mud; Avoids cost of disposing of liquid waste.
Brightway Mud Cleaner Applications: OIL&GAS DRILLING—-Solids Control System; HDD & CBM Drilling —-Mud Recycling System; Mining & Industrial—-Slurry Separation Plan; Coal bed methane (CBM) & Geothermal well drilling—Fluids Cleaning System.
1. Design: Adopt ANSYS limited element analysis to optimize the structure.
2. Material: Use Q235B from BAOSTEEL for body, and High strength compound rubber material used to reduce shock.
3. Vibration motor: Italy OLI /American Martin, or according to customer requirement.
4. Electrical control system: Explosion-proof electrical control system with electrical components as ABB, Siemens, Schneider
5. Treatment: With the process as pickling, galvanizing-assist, galvanizing, inactivation, fine-polishing . Anti-rust performance is muchbetter than the painting process, and protects live-span and improves the corrosion periods.
6. Hydracyclone cone: Made of wearing-resist polyurethane and in the structure similar to Derrick design.
7. Inlet and outlet: Fast joint connection
Certification: IEC/UL/ATEX/CE
Power: 220-240V/ 50Hz, 380-415V/ 50Hz, 440-480V/ 60Hz, 575-600V/ 60Hz
Remark:
1. Shaker motor type selection can be configured according to customer requirements, explosion-proof and non-explosion-proof can be selected according to industry requirements;
2. The matching shaker and cyclone can be selected according to the purchasing power of customers;
3. Shaker screen can be selected according to customer requirements, iron frame, composite material or plate wave screen;
4. The treatment capacity of the above equipment is measured in mud density: 1.2g /cm3, mud viscosity :45s, screen mesh: 40 mesh;
